Unlike water, gases undergo changes in properties due to thermal expansion and contraction. If pressure fluctuates from 6 bar to 8 bar, a volumetric reading taken at 6 bar loses its significance; even if the volume figure remains constant, the actual mass of the gas being conveyed changes by more than 30%.
Therefore, when selecting a gas flow meter, you are choosing not just a piece of equipment, but a measurement strategy.
Step 1: Know Your Gas
Clean, dry, stable composition? Dirty, wet, or variable? That decides everything.
Clean, dry gases (air, nitrogen, oxygen, natural gas with good filtration): you have options.
Wet gases, biogas, flue gas, or variable composition: avoid thermal mass meters-they rely on specific heat capacity, which changes with composition.
Corrosive gases (chlorine, hydrogen sulfide): material selection becomes the priority-316L, Hastelloy, or PTFE-lined sensors.
Step 2: Choose the Measurement Principle
Three main technologies dominate gas applications:
| Technology | Best for | What to watch |
|---|---|---|

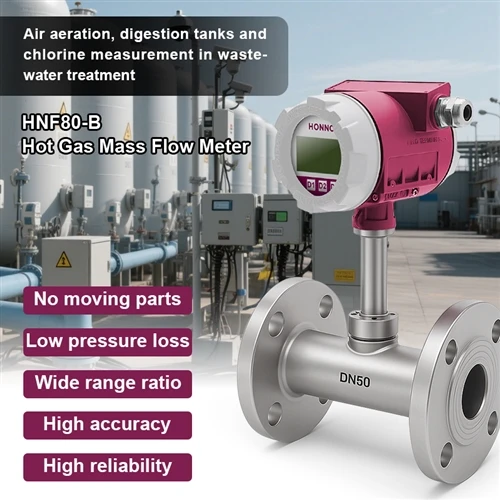

| Thermal mass (HNF80-B) | Dry, clean gases; direct mass flow; leak detection; no temp/pressure compensation needed | Composition changes affect accuracy; not for wet gas |
| Vortex (HNF40-B) | Steam, wet gas, variable pressure/temp; good for dirty gases; output can be mass with built-in compensation | Requires straight pipe; vibration can fool the sensor |
| Turbine (HNF20-C) | Clean, dry gases at stable pressure; low cost; good accuracy (±1%) | Moving parts wear; needs filtration; poor at very low flow |
Decision shortcut:
- If you need mass flow and gas is clean → thermal mass (simplest, no extra sensors).
- If gas is wet, hot, or composition varies → vortex with temperature and pressure compensation.
- If you're on a tight budget and gas is clean and stable → turbine with temperature compensation.
Step 3: Don't Forget Installation
Gas meters are more sensitive to installation errors than liquid meters. Lower density means less momentum-swirl and velocity distortion take longer to settle.
Straight pipe: minimum 10D upstream, 5D downstream for vortex and turbine. For thermal insertion types, follow the manual-often 15D upstream.
Orientation: thermal and vortex meters can be installed horizontally or vertically (flow upward). Turbines prefer horizontal to reduce bearing wear.
Filters: always install a filter upstream of a turbine meter. We've seen bearings fail in six months on unfiltered natural gas.
Pulsation: reciprocating compressors create flow pulsation that can make vortex meters read high by 20%. Use a pulsation dampener or choose a thermal meter (less sensitive to pulsation).
Common Field Mistakes
- Ignoring pressure and temperature compensation – A vortex meter without compensation outputs volumetric flow at line conditions. If your pressure changes 10%, your mass flow error is roughly 10%. Always specify compensated output for billing or energy accounting.
- Oversizing the meter – Gas flows are often overestimated. A meter that's too large runs at the bottom of its range, where accuracy drops. For thermal meters, turndown is wide (100:1), but for turbines, running below 30% of max flow gives poor repeatability.
- Using a liquid-rated meter on gas – Some electromagnetic and ultrasonic meters are liquid-only. Check the spec.
- Forgetting about dew point – If your gas cools below its dew point, liquid condenses inside the meter. This kills thermal sensors and corrodes turbine bearings. Install a dryer or heat trace if needed.
A Quick Reference for Common Gases
| Gas | Recommended meter | Why |
|---|---|---|
| Compressed air, N₂, O₂ (dry) | Thermal mass (HNF80-B) | Direct mass, no compensation, leak detection |
| Natural gas (clean, dry, stable) | Turbine + temp comp (HNF20-C) | Cost-effective for sub-metering |
| Natural gas (custody transfer) | Thermal mass or vortex with compensation | Higher accuracy needed |
| Wet steam, biogas, flare gas | Vortex with T/P compensation (HNF40-B) | Handles moisture and variable density |
| Hydrogen, helium | Thermal mass or Coriolis | No lubrication for turbines; bearings fail |
The Bottom Line
Selecting a gas flow meter isn't about the technology-it's about the gas condition and the installation. Clean, dry, steady? Thermal mass saves you from adding pressure and temperature transmitters. Wet, hot, or swinging? Vortex with compensation gives you reliable mass flow without composition headaches.
If you're unsure, send us your gas composition, pressure range, temperature, pipe size, and flow range. We'll point you to the right model-and more importantly, the right installation practice. Most errors happen before the meter is powered on. Get those right, and the meter will run for years without a call.
